1stCoolFan Energy Saving Water-cooled Air condioner, help you save too much cost for large area cooling!
WPS图片(7)
1.节能省电

Energy-efficient

2

Long airflow range

3

Low noise

4

Branded components

5

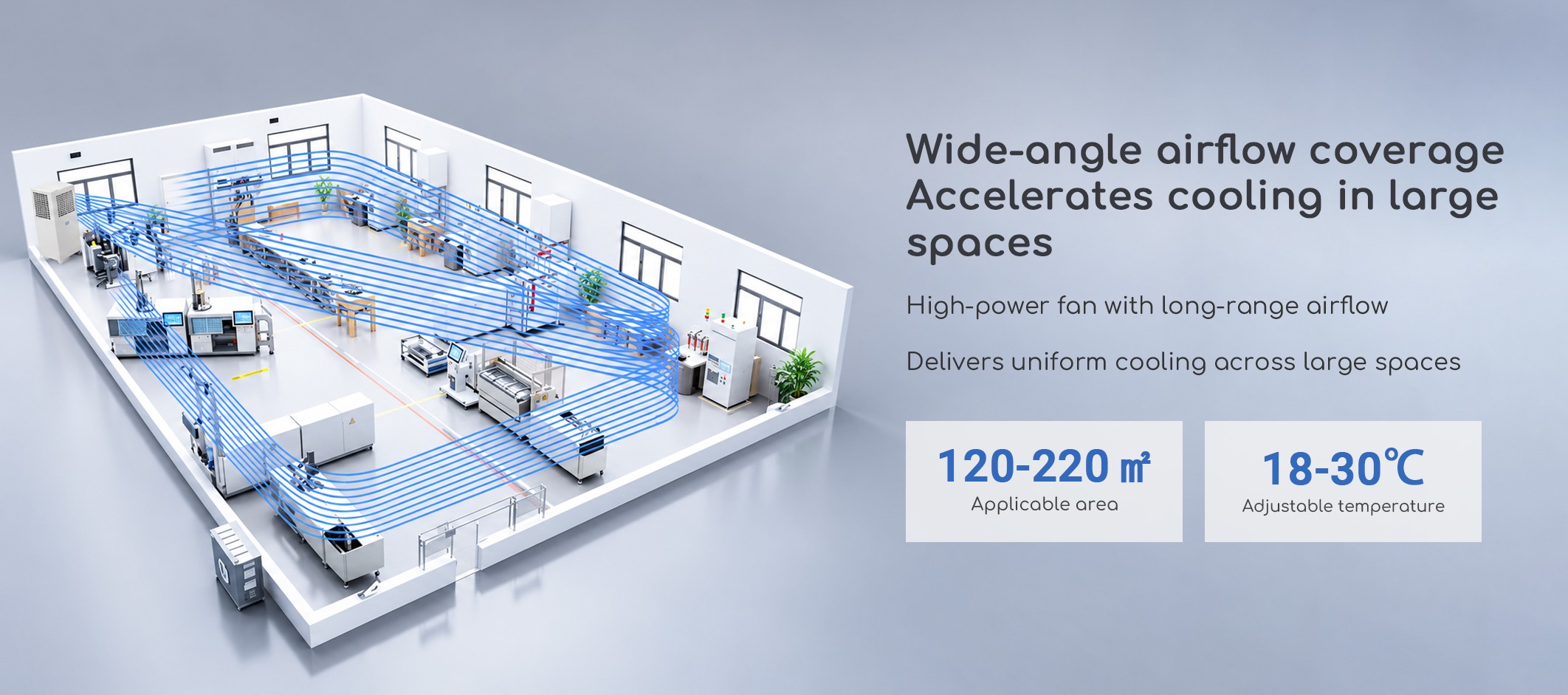

Wide cooling coverage

6

Versatile applications

1000sqm factory, different ventilation comparision

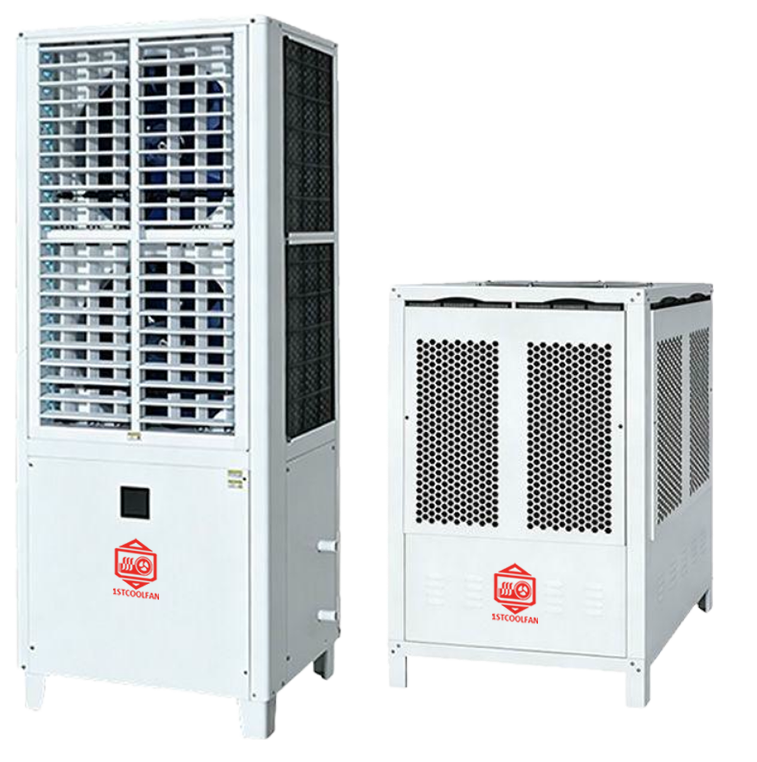

Vertical Blinds Type

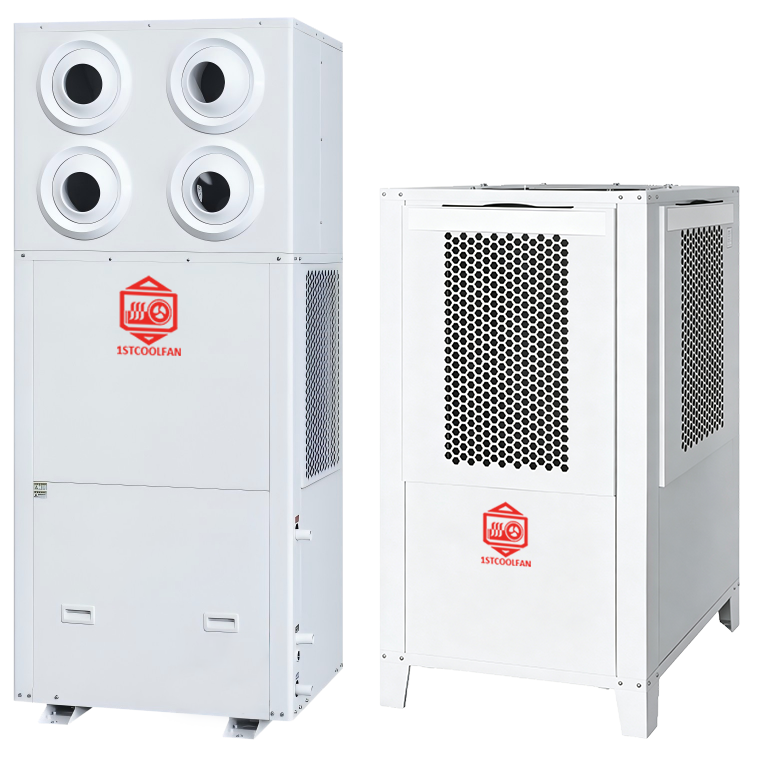

Vertical Jet Model

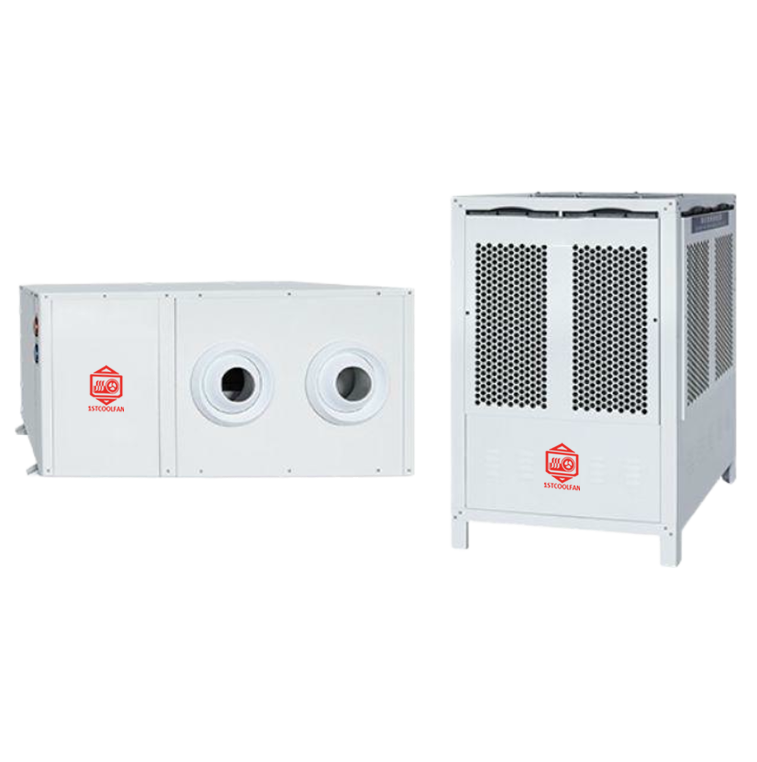

Ceiling Jet Model
ModelCTAK-5KCTAK-7KCTAK-10KCTAK-12K
Nominal cooling capacity17KW28.5KW35KW53KW
Rated power3.7KW6.5KW6.8KW10.3KW
Maximum air volume5000m³/H9000m³/H10000m³/H12000m³/H
Air-out modeFront exhaustFront exhaustFront exhaustFront exhaust
Wind Sensing Distance10-15m10-15m10-15m10-15m
Installation modeFloor-standing installationFloor-standing installationFloor-standing installationFloor-standing installation
Input voltage380V 3N/50HZ380V 3N/50HZ380V 3N/50HZ380V 3N/50HZ
Input current10A17A18A28A
Energy efficiency ratio4.594.45.145.14
Water storage capacity50L50L50L50L
Evaporation capacity35L/H35L/H50L/H50L/H
Rated flow6m³/H9m³/H12m³/H12m³/H
Inlet and outlet water pipeφ32φ32φ32φ32
Horizontal distance between connecting internal and external machines40-50m40-50m50-60m50-60m
Height difference between connecting internal and external machines10m10m10m10m
Protection gradeIPX4IPX4IPX4IPX4
RefrigerantR410AR410AR410AR410A
Noise≤53dB≤55dB≤65dB≤68dB
Weight158kg+105kg170kg+105kg213kg+116kg243kg+116kg
Indoor unit dimensions790*560*1860mm790*560*1860mm920*530*1990mm920*530*2140mm
Outdoor unit dimensions780*780*1490mm780*780*1490mm890*890*1460mm890*890*1460mm
Applicable area150-200m²200-250m²250-350m²350-450m²


ModelCTAK-5KCTAK-7KCTAK-10KCTAK-12KCTAK-15K
Nominal cooling capacity17KW28.5KW35KW53KW66KW
Rated power4.5KW7.2KW8.5KW10.3KW13KW
Maximum air volume5000m³/H6000m³/H8000m³/H12000m³/H15000m³/H
Air-out modeFront exhaustFront exhaustFront exhaustFront exhaustFront exhaust
wind pressure300Pa350Pa450Pa550Pa650Pa
Wind Sensing Distance15-20m15-20m15-20m15-20m15-20m
Installation modeFloor-standing installationFloor-standing installationFloor-standing installationFloor-standing installationFloor-standing installation
Input voltage380V 3N/50HZ380V 3N/50HZ380V 3N/50HZ380V 3N/50HZ380V 3N/50HZ
Input current12A19A20A28A35A
Energy efficiency ratio3.844.665.145.3
Water storage capacity50L50L50L50L50L
Evaporation capacity35L/H35L/H50L/H50L/H50L/H
Rated flow6m³/H9m³/H12m³/H12m³/H15m³/H
Inlet and outlet water pipeφ32φ32φ32φ32φ32
Horizontal distance between connecting internal and external machines40-50m40-50m50-60m50-60m50-60m
Height difference between connecting internal and external machines10m10m10m10m10m
Protection gradeIPX4IPX4IPX4IPX4IPX4
RefrigerantR410AR410AR410AR410AR410A
Noise≤53dB≤55dB≤65dB≤65dB≤65dB
Weight152kg+105kg169kg+105kg228kg+116kg243kg+116kg332kg+136kg
Indoor unit dimensions770*620*2150mm770*620*2150mm900*750*2140mm920*530*2140mm1360*710*2120mm
Outdoor unit dimensions780*780*1490mm780*780*1490mm890*890*1460mm890*890*1460mm910*910*1620mm
Applicable area150-200m²200-250m²250-350m²350-450m²500-600m²


ModelCTAK-5KCTAK-7KCTAK-10KCTAK-12K
Nominal cooling capacity17KW28.5KW35KW53KW
Rated power4.5KW7.2KW8.5KW11.2KW
Maximum air volume5000m³/H6000m³/H8000m³/H10000m³/H
Air-out modeFront exhaustFront exhaustFront exhaustFront exhaust
wind pressure300Pa350Pa450Pa550Pa
Installation modeSuspended installationSuspended installationSuspended installationSuspended installation
Input voltage380V 3N/50HZ380V 3N/50HZ380V 3N/50HZ380V 3N/50HZ
Input current12A19A20A30A
Energy efficiency ratio3.7744.664.73
Water storage capacity50L50L50L50L
Evaporation capacity35L/H35L/H50L/H50L/H
Rated flow6m³/H9m³/H12m³/H12m³/H
Inlet and outlet water pipeφ32φ32φ32φ32
Horizontal distance between connecting internal and external machines40-50m40-50m50-60m50-60m
Height difference between connecting internal and external machines10m10m10m10m
Protection gradeIPX4IPX4IPX4IPX4
RefrigerantR410AR410AR410AR410A
Noise≤53dB≤55dB≤65dB≤68dB
Weight152kg+105kg168kg+105kg223kg+116kg248kg+116kg
Indoor unit dimensions1250*840*710mm1250*840*710mm1500*860*710mm1500*860*810mm
Outdoor unit dimensions780*780*1490mm780*780*1490mm890*890*1460mm890*890*1460mm
Applicable area150-200m²200-250m²250-350m²350-450m²


74b6efa2-7e74-427e-bd41-1a65b2eb803c

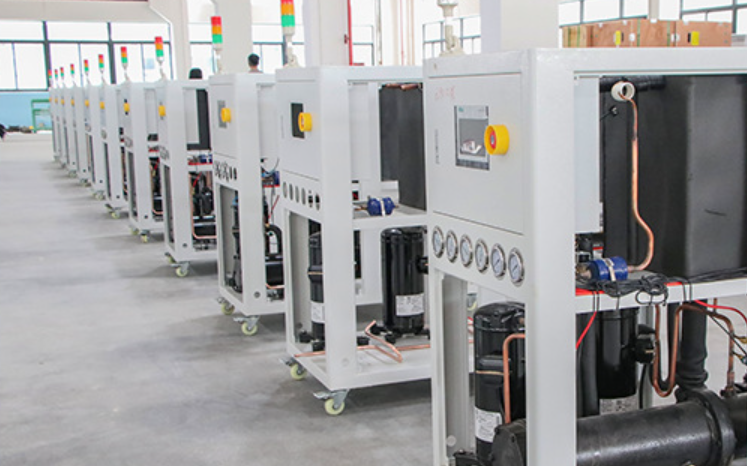

DETAIL DISPLAY

组-395

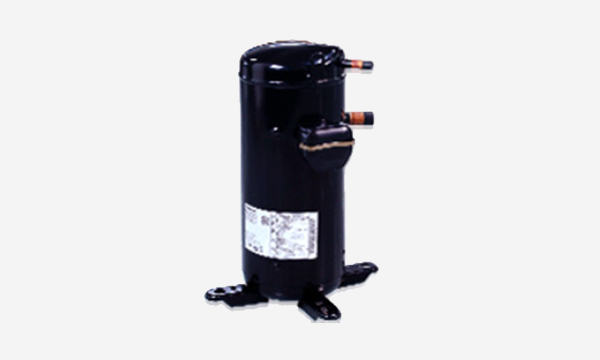

Turbo compressor

Japanese Panasonic fast cooling scroll compressor, with high efficiency, wear resistance, high temperature resistance, low noise level and noise reduction function, strong performance and fast cooling.

SHELL AND TUBE HEAT EXCHANGER

Domestic famous shell and tube heat exchanger, 45 steel tube shell, 38 spiral copper tube, fast heat exchange and small water resistance.

组-396
组-397

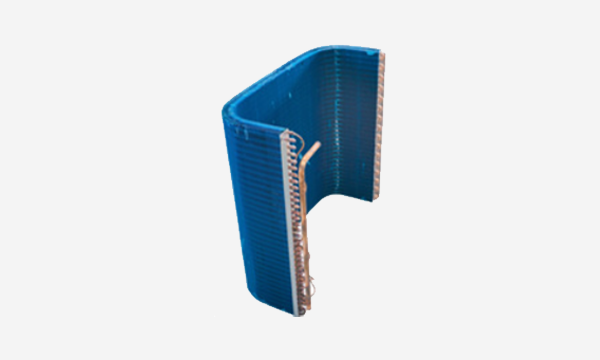

EVAPORATOR

Use U-shaped large area evaporator with high efficiency internal thread copper tube, high heat exchange efficiency, corrosion resistance and long service life.

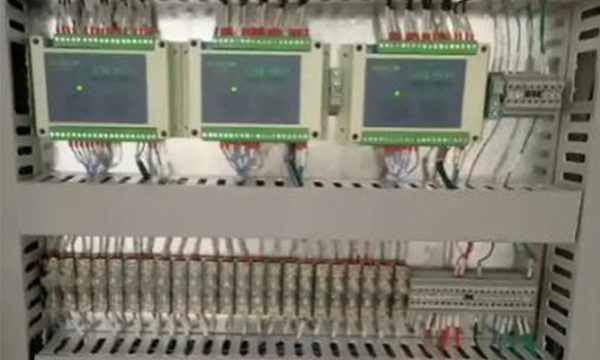

Controller system

The electric control adopts Schneider controller, automatic defrosting control panel, and automatic drainage function.

组-398
